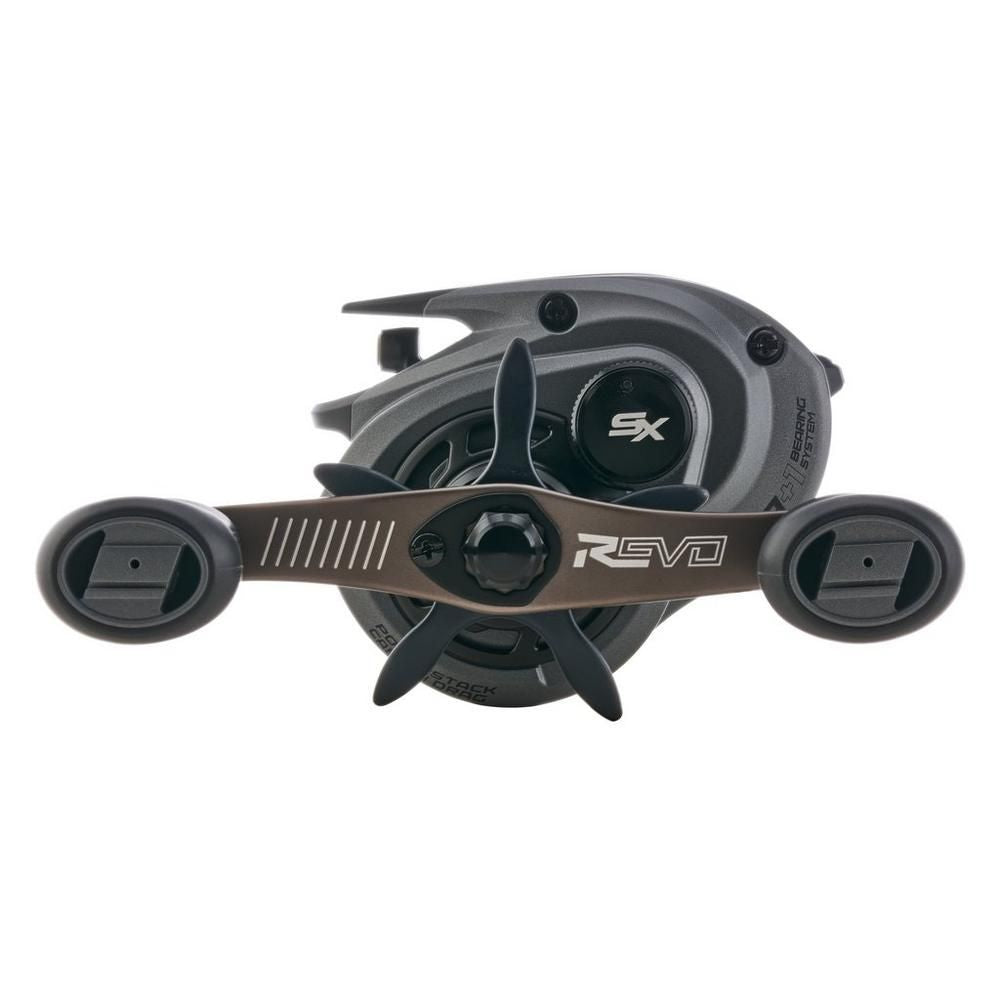

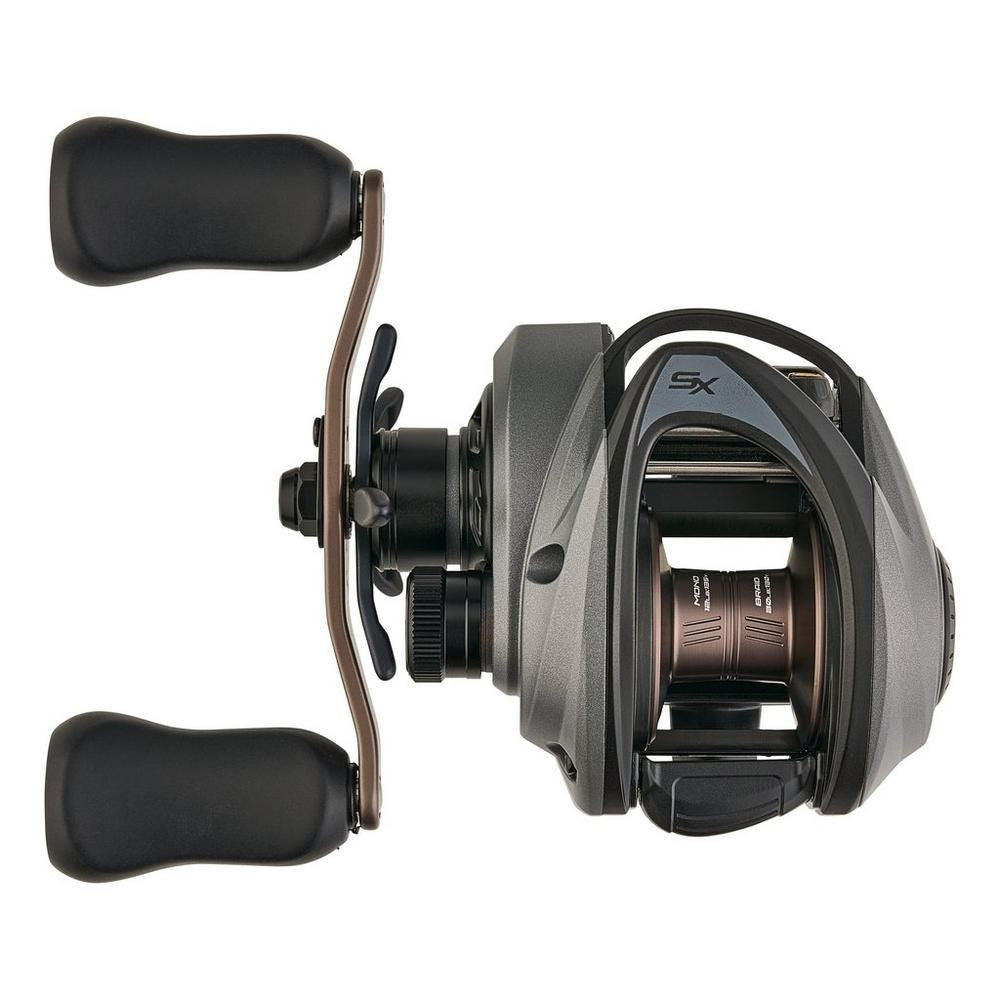

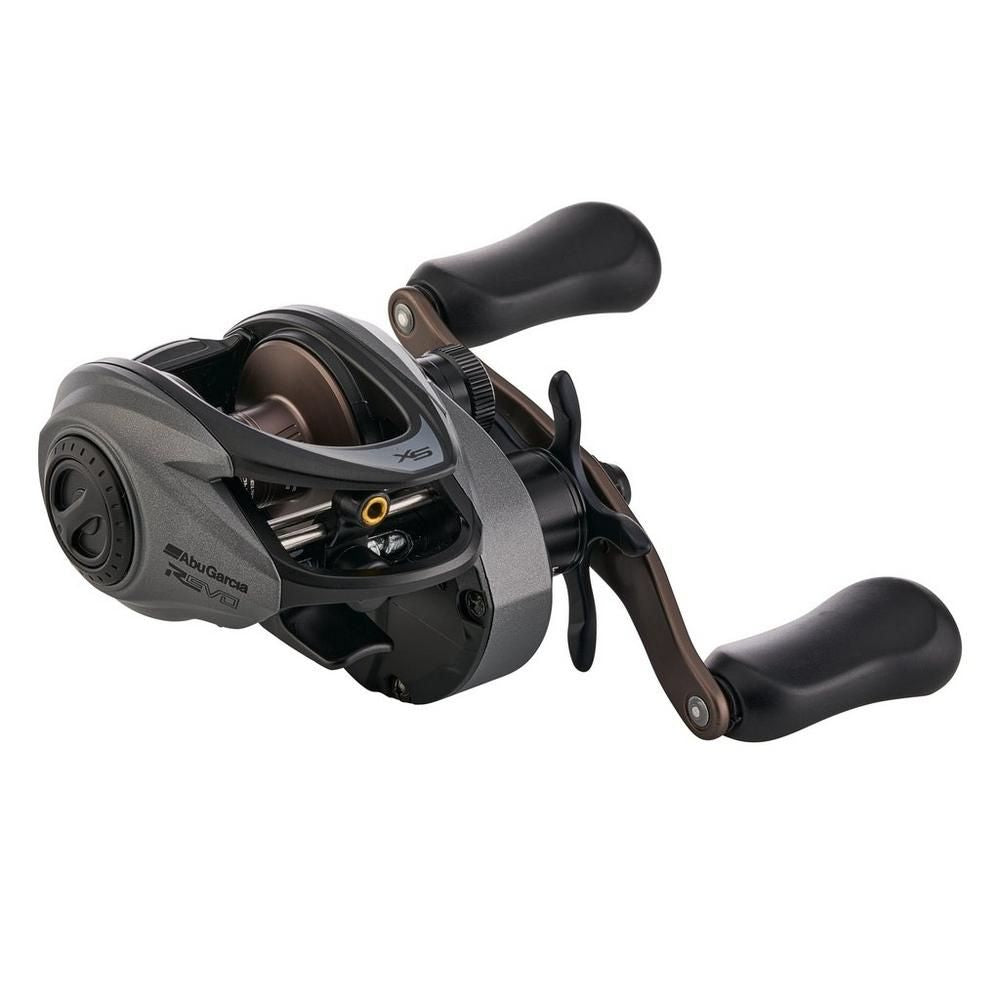

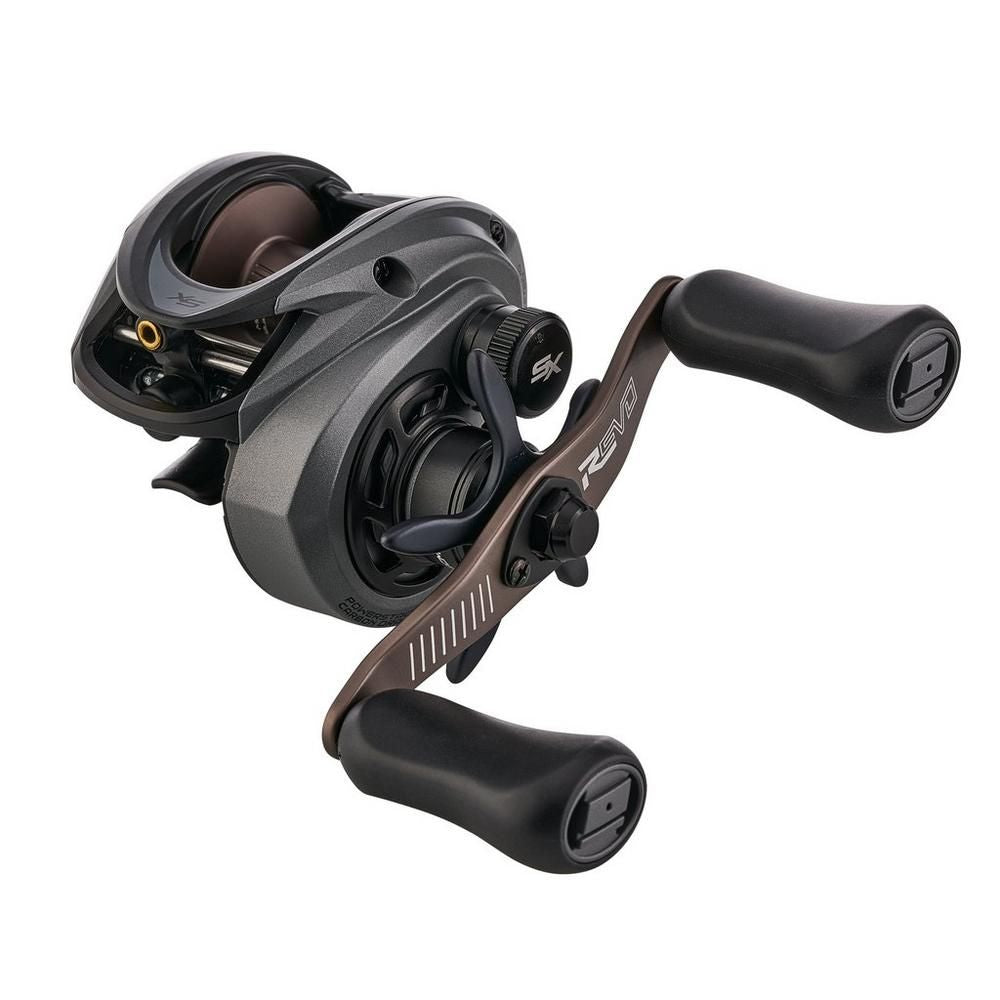

Abu Garcia Revo-5SX LowProfile Baitcasting Reel

Abu Garcia Revo-5SX LowProfile Baitcasting Reel

Redesigned from the ground up, the 5th generation of Revo low profile reels have been designed to provide best-in-class precision, power, and performance. The Revo SX features our X2-Cräftic™ alloy frame and asymmetrical body design to provide the ultimate balance in weight, strength, and ergonomics. With our D2 Gear design and up to 25 lbs of Power Stack Carbon Matrix drag, the Revo SX has the torque and power you need in a workhorse reel. The EXD Concept design allows anglers to maximize their casting performance while our IVCB-6 braking system gives anglers ultimate control with nearly limitless braking options.

9 stainless steel ball bearings +1 roller bearing
X2-Cräftic™ alloy frame
EXD concept design
Asymmetrical body design
C6 Carbon sid plates
IVCB-6 braking system
Power Stack Carbon Matrix Drag System
90mm bowed aluminium handle with oversized knobs
Duragear Gen II gear system

SX LP-L ( Left Handle)

Item No:1565153
Reel Size:LP
Drag Type:Star Drag
Gear Ratio:6.7:1
Bearing Count:10
Max Drag lb:25lb|11.3kg
Mono Capacity yd/lb:160/10 130/12 90/17
Mono Capacity m/mm:145/0.29 120/0.32 85/0.38
Reel Handle Position:Left
Anti-Reverse Feature:Instant Anti-Reverse
Retrieve Rate:29?|74cm
Drag Material:Carbon Fiber
Braking System:Centrifugal
Reel Spool Material:Aluminum
Braid Capacity yd/lb:170/20 125/30 90/50
Braid Capacity m/mm:155/0.29 115/0.36 80/0.41

SX-HS LP-L ( Left Handle)

Item No:1565155
Reel Size:LP
Drag Type:Star Drag
Gear Ratio:7.3:1
Bearing Count:10
Max Drag lb:25lb|11.3kg
Mono Capacity yd/lb:160/10 130/12 90/17
Mono Capacity m/mm:145/0.29 120/0.32 85/0.38
Reel Handle Position:Left
Anti-Reverse Feature:Instant Anti-Reverse
Retrieve Rate:32?|80cm
Drag Material:Carbon Fiber
Braking System:Centrifugal
Reel Spool Material:Aluminum
Braid Capacity yd/lb:170/20 125/30 90/50
Braid Capacity m/mm:155/0.29 115/0.36 80/0.41
